Here are some shots of the modifications I have made to the Falcon.
Since purchasing the car April of 2001 I have:

Installed an EFI HO 5.0L from an '87 Mustang.

Installed a T5 from an '87 Mustang. I installed a Hurst quick shifter to make the shifts short and tight.

Converted the engine from density air to Mass air.

Rebuilt the front suspension using '65 Mustang parts from Canadian Mustang.

Lowered the upper control arms aka Shelby Mustangs.

Installed a 1" front sway bar and 3/4" rear sway bar.

New carpet.

Removed the shock tower supports and installed custom removable supports.

Converted the front brakes to discs from a '79 Granada.

Installed a power dual master cylinder from a Geo Metro.

Battery located to trunk for space and weight transfer.

The starting point!!
It may look rough but hey you gotta start somewhere!

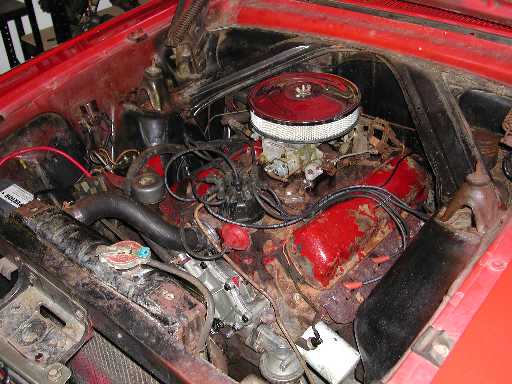

  The original 260V8 the car came with.
As you can see the engine and engine compartment were not the cleanest.

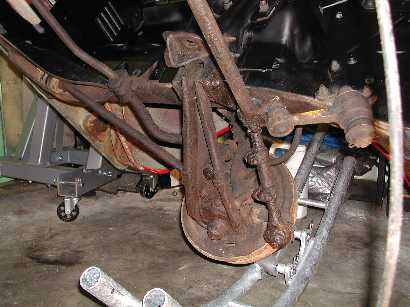

Suspension starting point!
Yes it is greasy and nasty but it is a V8 steering so it will work well with the engine change coming!

The upper and lower control arms were replaced with '65 Mustang parts from Canadian Mustang. The upper control arms were moved ala Shelby!

The springs were replaced with 620 rate lowering springs. Unfortunately it didn't lower it due to the lighter Falcon. Gotta cut a 1/2 coil still to get the stance I want! I ended up putting in '65 Mustang standard #420 rate springs which gave it just the right ride height.

The brakes were replaced with discs off of a '79 Ford Granada.

Out with the dinky sway bar and in with the 1" sway bar.

Add your link here

Engine Compartment Fix-up

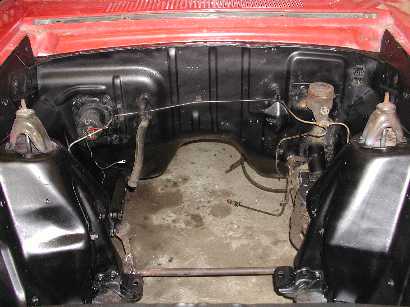

Well with the engine change the shock tower supports had to go! Here is the engine compartment sans engine. Perfect time to clean and paint!

The master cylinder and upper shock supports days are numbered!

You can't see it but to open up the cooling for the Mustang radiator I opened up the area for air to pass through the radiator.

Add your link here

Man was I a mess after tearing into this.

Much better with new paint!
